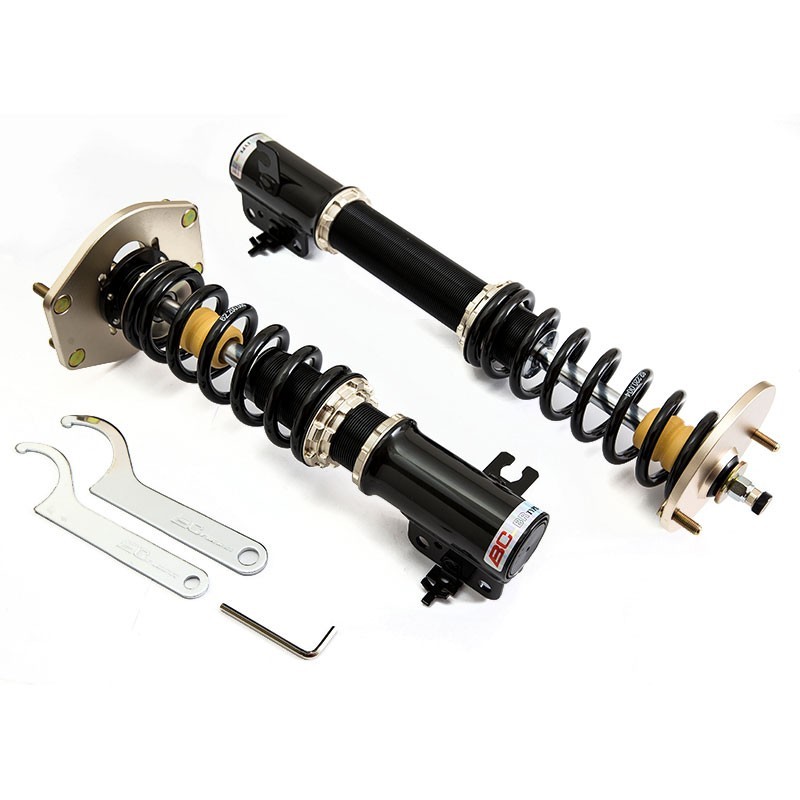

BC Racing BR Type RA for BMW E90 / E92 coilover suspension kit

Coilover kit for BMW 3 Series E90 Sedan and E92 coupe ( 05-11 )

Exc: E93 Cabriolet, E90 AWD, E91 AWD, E92 AWD and E92 M3 Coupe

The standard kit comes with spring rates of 5.5 kg/mm front and 8 kg/mm rear and it's recommended for trackday use.

We recommend to contact us for a consultation on the spring rate for your model.

On order it is possible to choose different spring rate.

• Monotube dampers, oil + pressurized nitrogen
• 30 way adjustable damping compression+rebound combined
• Front top mounts with adjustable camber plates on uniball
• Linear springs, standard rates 8 kg/mm front, 12 kg/mm rear, custom option available
• Adjustable spring platform
• Height adjustment via bottom mount to retain full damper travel
• Dust boot to protect damper seals
• Front sway bar drop links included

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.

For more information or to order a coilover kit with custom spring rate please contact us:

tel/Whatsapp: +39 331 9622326

Mail: info@gardustech.com
