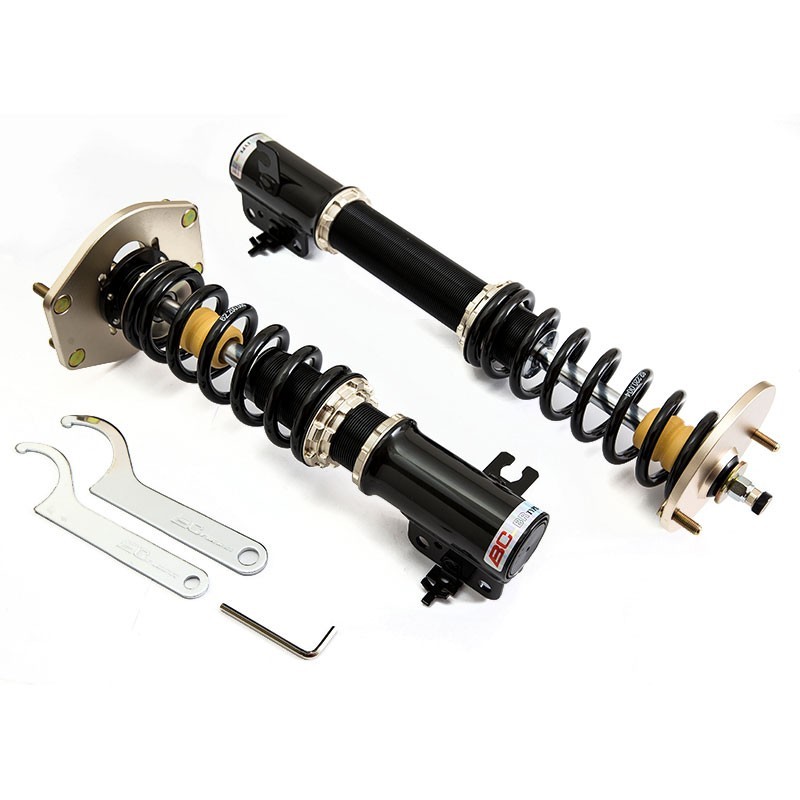

BC Racing BR Type RA for BMW M135i/M140i and M235i/M240i 5 bolts coilover suspension kit

Coilover kit for BMW 1 Series F20 / F21 M135i/M140i and 2 Series F22 / F23 M235i / M240i

The standard kit comes with spring rates of 7 kg/mm front and 12 kg/mm rear and it's recommended for trackday use.

Only for models with 5-bolt top mount

EXCLUDED cars:

- all F20 NOT M135i or M140i

- F20 M135i and 140i xDrive

- all F21 NOT M135i or M140i

- F21 M135i and 140i xDrive

- all F22 NOT M135i or M140i

- F22 M135i and 140i xDrive

- all F23 NOT M135i or M140i

- F87 M2

On order it is possible to choose different spring rate.

• Monotube dampers, oil + pressurized nitrogen
• 30 way adjustable damping compression+rebound combined
• Front top mounts with adjustable camber plates on uniball
• Linear springs, standard rates 7 kg/mm front, 12 kg/mm rear, custom option available
• Adjustable spring platform
• Height adjustment via bottom mount to retain full damper travel
• Dust boot to protect damper seals
• Front sway bar drop links included

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.
