BC Racing BR Type RA for BMW 3 Series F30/F31 AWD 3-bolts

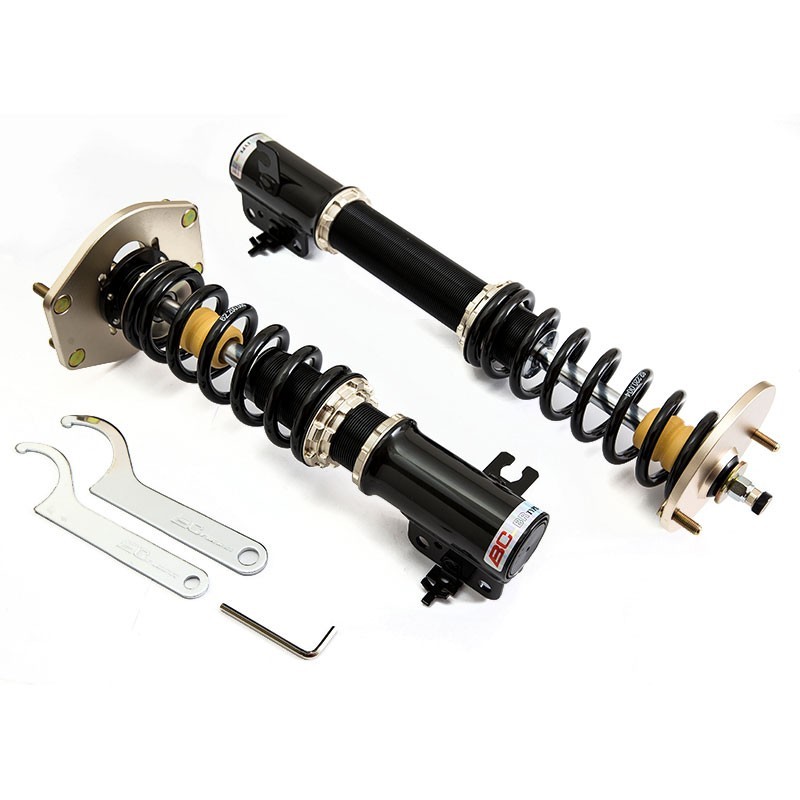

Coilover kit for BMW 3 Series F30 Sedan and F31 Touring ( 2012+ ) AWD

Only for models with 3-bolt top mount

EXC RWD and M models

The standard kit comes with spring rates of 6 kg/mm front and 12 kg/mm rear and it's recommended for trackday use.

On order it is possible to choose different spring rate.

• Monotube dampers, oil + pressurized nitrogen
• 30 way adjustable damping compression+rebound combined
• Front top mounts with adjustable camber plates on uniball
• Linear springs, standard rates 6 kg/mm front, 12 kg/mm rear, custom option available
• Adjustable spring platform
• Height adjustment via bottom mount to retain full damper travel
• Dust boot to protect damper seals
• Front sway bar drop links included

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximise oil capacity.

For more information or to order a coilover kit with custom spring rate please contact us:
