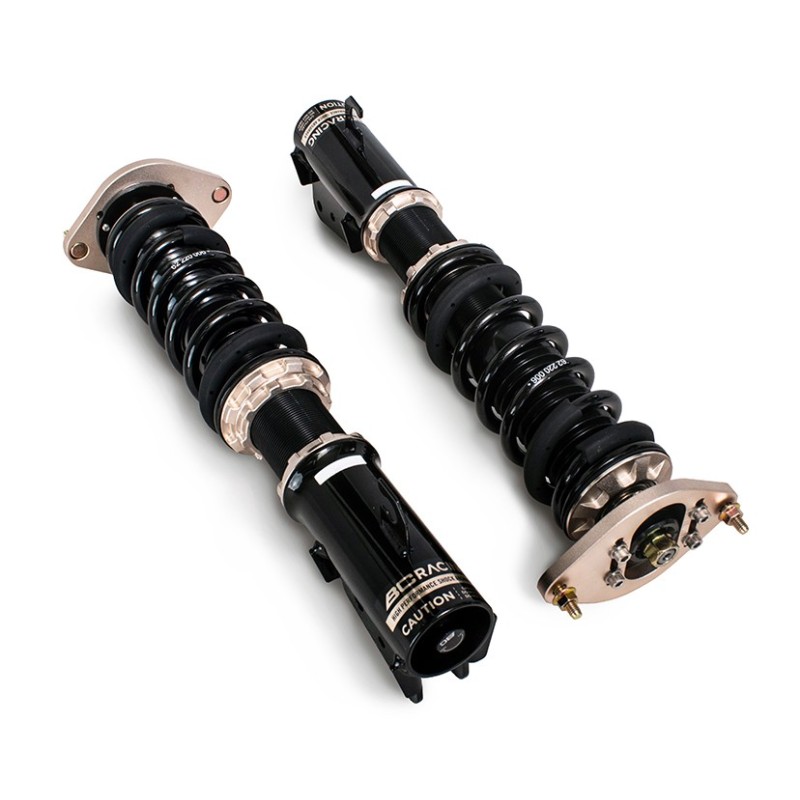

BC Racing RM Type MH for Toyota Celica ST185 AWD

BC Racing RM Type MH adjustable shock absorber kit for Toyota Celica ST185 AWD from 1990 to 1993.

BC Racing's inverted RM Type model includes all of the great features from the BR Type model and then takes everything a notch higher. By using an inverted coilover system we move the vital damper fluid away from detrimental heat sources to avoid overheating the fluid and causing damper fatigue under extreme conditions. The inverted setup also handles high-G loading better and is much more durable under extended-stress situations, such as a race track. Another advantage is the reduction of unsprung weight by moving the heavy portions to the chassis mounting points. This is a great coilover setup for those looking to attack a road course, hill climb, or tarmac rally.

These BC Racing RMs are equipped with front Pillowball Top Mounts to further improve steering precision and to keep the car angles unchanged. The camber is adjustable.

Features of BC Racing RMs:

• Engineered for 100% track use
• Pillowball top mount with adjustable camber
• Inverted damper design
• Monotube dampers, oil + pressurized nitrogen
• Linear springs, standard rates 10 kg/mm front, 5 kg/mm rear, custom option available
• 30 levels of damping adjustment (compression + rebound combined)
• Adjustable spring platform (Preolad)
• Height adjustment via lower mount to retain full damper travel
• Dust boot to protect damper seals

Optional, it is possible to choose different spring rates. The hydraulics will be calibrated accordingly.

All individual spare parts are available to order.
