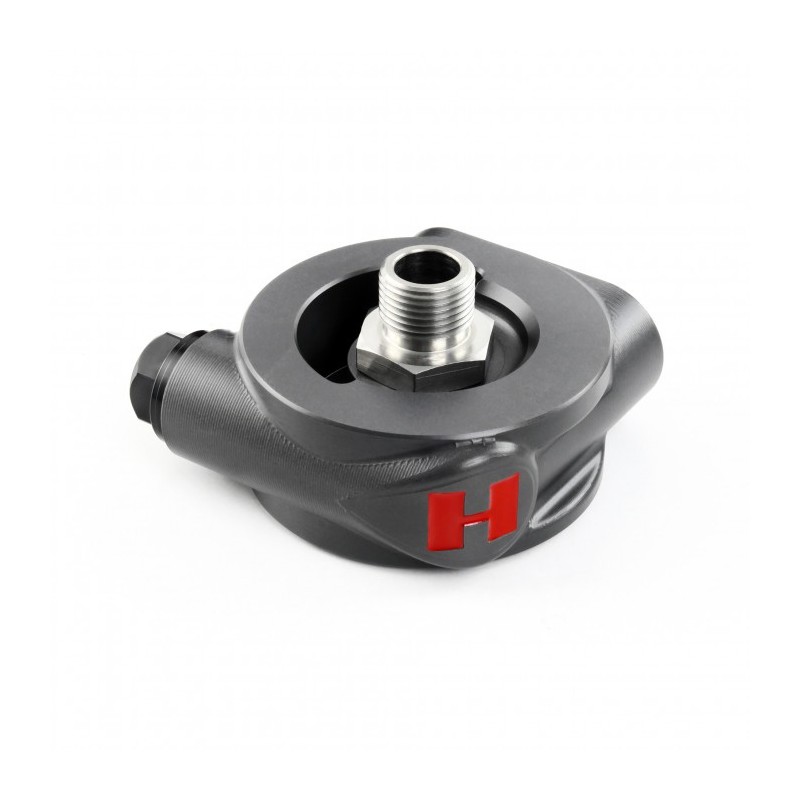

Solid Billet Thermostatic Oil Filter Sandwich Plate HEL Performance

Solid Billet Thermostatic Oil Filter Sandwich Plate HEL Performance.

Thermostat opening selectable from the drop-down menu.

Central bolt thread selectable from the drop-down menu.

M22 x 1.5 inlet and outlet ports. Possibility of using -8 AN, -10 AN or -12 AN adapters (Male to Male). Adapters selectable from the drop-down menu.

Made in the UK.

Thermostat: 82°C
Center Bolt Thread: M20 x 1.5
Inlet and Outlet Adapters: -8 AN JIC
Sensor Port Adapters: No Adapters - Sensor Port Blanking Plugs with O-Rings
Quantity

Solid Billet Thermostatic Oil Filter Sandwich Plate HEL Performance.



Machined from 6082-T6 Billet aluminium in-house at HEL's United Kingdom headquarters.

This updated design spends a little longer being machined giving it some extra details which mean not only does it have the performance associated with HEL but it also has the aesthetics to match. Its bull-nosed finish is bead blasted before being hard anodised for maximum protection.

Assembled and inspected by hand and finished with a paint infilled H logo.

The HEL Performance sandwich plate comes with a built-in thermostat, which prevents the flow of oil to the cooler until the engine oil reaches the desired temperature. This allows for both a faster warmup and also extra protection in cold environments over a non-thermostatic sandwich plate. If your oil temperature dips the thermostat will close again enabling your oil to stay at its optimum temperature.



Thermostat opening selectable from the drop-down menu.

Central bolt thread selectable from the drop-down menu.

M22 x 1.5 inlet and outlet ports. Possibility of using -8 AN or -10 AN adapters (Male to Male). Adapters selectable from the drop-down menu.



Includes thermostat valve? Yes

Thermostat temperature: 82°C, 92°C, 102°C

Lenght (excl. adapters): 80mm

Width (widest point, incl. thermostat cap): 87.3mm

Thickness (excl. o-Ring): 32mm

Weight (excl. adapters): 278g

Min. oil filter o-ring diameter: 52mm

Max. oil filter o-ring diameter: 75mm

Inlet/outlet port thread: M22x1.5

Centre bolt thread: M20 x 1.5 or 3/4"-16 UNF

O-ring material: nitrile

Colour: "HEL" grey

Finish: hard anodised

Material: 6082-T6 aluminium

Made in the UK.
